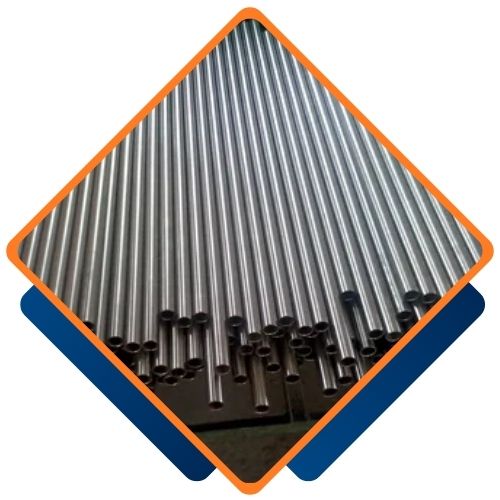

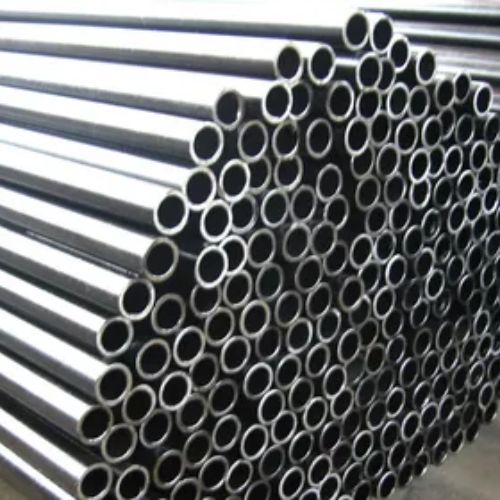

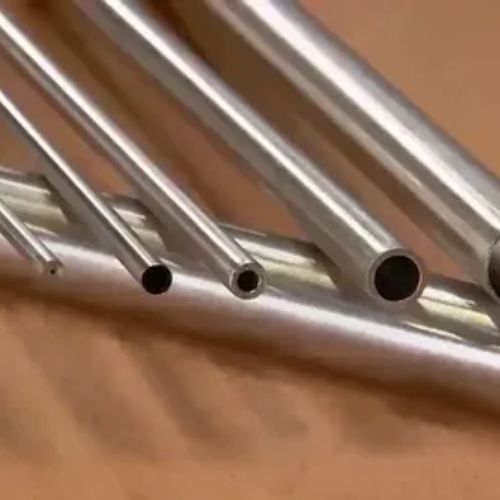

Tun Pipes, located in Naypyidaw, Myanmar, stands out as a top manufacturer and supplier of high-quality Titanium Grade 5 Tubing. Known for its precision engineering and reliability, the company produces tubing that adheres to strict industrial standards, guaranteeing outstanding performance across a variety of applications. With state-of-the-art manufacturing facilities and a strong commitment to excellence, Tun Pipes caters to industries like aerospace, chemical processing, marine, and medical equipment. Their Titanium Grade 5 Tubing is highly regarded for its remarkable strength-to-weight ratio, resistance to corrosion, and durability, making it a go-to choice for engineers and designers working in challenging environments.
Titanium Grade 5 Tubing, or Ti-6Al-4V, is an alloy made up of about 90% titanium, 6% aluminum, and 4% vanadium, along with small amounts of iron and oxygen. This unique blend provides impressive mechanical properties, including a tensile strength of roughly 895 MPa, a yield strength of around 830 MPa, and an elongation of 10–15%. The alloy is known for its high fatigue resistance and exceptional corrosion resistance in both oxidizing and reducing conditions, while also maintaining its structural integrity at high temperatures—making it perfect for applications where strength and lightweight performance are crucial.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Al | Fe | O | Ti | V |
|---|---|---|---|---|
| max | max | max | max | max |
| 6 | 0.25 | 0.2 | 90 | 4 |
| Hardness, Brinell | 334 | 334 | Estimated from Rockwell C. |
|---|---|---|---|
| Hardness, Knoop | 363 | 363 | Estimated from Rockwell C. |
| Hardness, Rockwell C | 36 | 36 | |
| Hardness, Vickers | 349 | 349 | Estimated from Rockwell C. |
| Tensile Strength, Ultimate | 950 MPa | 138000 psi | |
| Tensile Strength, Yield | 880 MPa | 128000 psi | |
| Elongation at Break | 14 % | 14 % | |
| Reduction of Area | 36 % | 36 % | |
| Modulus of Elasticity | 113.8 GPa | 16500 ksi | |
| Compressive Yield Strength | 970 MPa | 141000 psi | |
| Notched Tensile Strength | 1450 MPa | 210000 psi | Kt (stress concentration factor) = 6.7 |
| Ultimate Bearing Strength | 1860 MPa | 270000 psi | e/D = 2 |
| Bearing Yield Strength | 1480 MPa | 215000 psi | e/D = 2 |
| Poisson’s Ratio | 0.342 | 0.342 | |
| Charpy Impact | 17 J | 12.5 ft-lb | V-notch |
| Fatigue Strength | 240 MPa | 34800 psi | at 1E+7 cycles. Kt (stress concentration factor) = 3.3 |
| Fatigue Strength | 510 MPa | 74000 psi | Unnotched 10,000,000 Cycles |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 5 Tubing from Tun Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Tun Pipes and Tubes, a leading supplier of Titanium Gr 5 Tubing in Naypyidaw, Myanmar, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Tun Pipes and Tubes, we provide custom sizes of Titanium Gr 5 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Titanium Grade 5 Tubing is widely used in industries that demand high strength, low weight, and excellent corrosion resistance. In aerospace, it’s utilized for hydraulic systems, airframes, and engine components. The chemical and petrochemical sectors depend on it for piping, heat exchangers, and reactors due to its ability to withstand corrosive chemicals. In the medical field, it’s used for surgical instruments and prosthetic devices. Marine applications take advantage of its durability in seawater environments. Additionally, it finds its place in sports equipment, automotive parts, and high-performance engineering projects where reliability in extreme conditions is a must.
