Carbon Steel JISG3456 Pipes Manufacturer, Supplier and Exporter in Naypyidaw, Myanmar

Nestled in the industrial landscape of Naypyidaw, Myanmar, Tun Pipes stands as a dedicated manufacturer and supplier of industrial piping solutions. We take immense pride in producing high-quality carbon steel pipes, including the reliable JISG3456 specification. Our pipes are meticulously crafted to meet exacting standards, ensuring they serve as a trustworthy backbone for critical infrastructure and industrial projects.

JIS G3456 Carbon Steel Pipes Supplier in Naypyidaw, G3456 Pipes Exporter in Yangon, Schedule 10 Carbon Steel JIS G3456 Pipes Manufacturer in West Naypyidaw, JIS G3456 Pipe Price List in Myanmar, JIS G3456 Distributor in Naypyidaw,JIS G3456 CS Pipes in Bago, JIS G3456 Pipe Supplier in West Naypyidaw, Carbon Steel JIS G3456 Pipes Distributor in Myanmar, JIS G3456 Sizes in mm

At the heart of our JISG3456 carbon steel pipes is a carefully balanced composition, primarily iron and carbon, with manganese and other trace elements. This specific formula is engineered to provide a solid combination of strength and ductility. The pipes consistently meet the mechanical requirements of the standard, offering dependable tensile strength and excellent pressure-bearing capabilities. This makes them a fundamentally sound choice for demanding applications.

Carbon Steel JISG3456 Pipes Specification

Standards	JIS G3456 Carbon Steel Pipe
JIS G3456 Carbon Steel Seamless Pipe Size	4 to 219mm W. T.: 0.5 to 20mm
JIS G3456 Carbon Steel Welded Pipe Size	5.0 mm – 1219.2 mm
JIS G3456 Carbon Steel EFW Pipe size	5.0 mm – 1219.2 mm
JIS G3456 Carbon Steel Tube Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
JIS G3456 Carbon Steel Pipe Schedule	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
JIS G3456 Carbon Steel Seamless Tube Size	3.35 mm OD To 101.6 mm OD
JIS G3456 Carbon Steel Welded Tube Size	6.35 mm OD To 152 mm OD
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
JIS G3456 Carbon Steel Tube wall thickness	0.020″ –0.220″, (special wall thicknesses available)
Length	Single Random, Double Random, Standard & Cut length Pipe & Tube
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form	Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc
Type	Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc
End	Plain End, Beveled End, Treaded Pipe & Tube
Marking	All JIS G3456 Carbon Steel Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application	Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Test Certificate	Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection

Carbon Steel JISG3456 Pipes Chemical Composition

Grade	C	Si	Mn	P	S
JIS G3456 STPT370	≤ 0.25	0.10-0.35	0.30-0.90	≤ 0.035	≤ 0.035
JIS G3456 STPT410	≤ 0.30	0.10-0.35	0.30-1.00	≤ 0.035	≤ 0.035
JIS G3456 STPT480	≤ 0.33	0.10-0.35	0.30-1.00	≤ 0.035	≤ 0.035

Carbon Steel JISG3456 Pipes Mechanical Properties

Grade	Tensile Property (N/mm2)	Yield Point or Yield Strength (N/mm2)	Elongation (%)
			NO. 11 Sample; NO. 12 Sample	NO. 5 Sample	NO. 4 Sample
			Longitudinal	Transverse	Longitudinal	Transverse
JIS G3456 STPT370	≥ 370	≥ 215	≥ 30	≥ 25	≥ 28	≥ 23
JIS G3456 STPT410	≥ 410	≥ 245	≥ 25	≥ 20	≥ 24	≥ 19
JIS G3456 STPT480	≥ 480	≥ 275	≥ 25	≥ 20	≥ 22	≥ 17

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Carbon Steel JIS G3456 Pipes Supplier in Naypyidaw, CS JIS G3456 Pipes Exporter in Yangon, Schedule 40 CS JIS G3456 Pipe Sizes in mm, JIS G3456 Manufacturer in West Naypyidaw, JIS G3456 CS Pipes Price List in Myanmar, JIS G3456 Carbon Steel Pipes Distributor in Bodrum,JIS G3456 CS Pipes in Bago,CS JIS G3456 Pipes Supplier in West Naypyidaw, JIS G3456 High Pressure Steel Pipe Distributor in Myanmar

Why Choose Carbon Steel JISG3456 Pipes from Tun Pipes and Tubes?

Choosing Carbon Steel JISG3456 Pipes from Tun Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

JIS G3456 Outer Diameter and Wall Thickness

Type	Allowable Deviation of Outer Diameter		Allowable Deviation of Wall Thickness
Hot-Working Seamless Steel Pipe	＜50 mm	± 0.5 mm	＜ 4 mm ≥ 4mm	± 0.5 mm ±12.5%	≤ 20% of thickness
	≥ 50mm~＜160mm	± 1%
	≥ 160mm~≤ 200 mm	± 1.6 mm
	≥ 200 mm	± 0.8%
	For ≥350 mm ones, we can measure according to the perimeters. Allowable deviation is ± 0.5%.
Cold-Working Steel Seamless Pipe and Electric-Resistance Welded(ERW) Steel Pipe	≤ 40 mm	± 0.03 mm	＜ 2 mm ≥ 2 mm	± 0.2 mm ± 10%	–

Largest Carbon Steel JISG3456 Pipes Supplier in Naypyidaw, Myanmar

Tun Pipes and Tubes is one of the largest Carbon Steel JISG3456 Pipes suppliers in Naypyidaw, Myanmar, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

CS JIS G3456 Pipes Exporter in Myanmar, Schedule 10 Carbon Steel JIS G3456 Pipes Price List in Naypyidaw, JIS G3456 Pipes Supplier in Yangon, Carbon Steel JIS G3456 Pipes Exporter in West Naypyidaw, Schedule 40 CS JIS G3456 Pipe Exporter in Naypyidaw,G3456 Carbon Steel Pipes Size Chart, JIS G3456 Pipe Price in Bago, Schedule 40 CS JIS G3456 Pipe Weight Chart, JIS G3456 Carbon Steel Pipes Thickness, JIS G3456 Pipe Supplier in Myanmar, Carbon Steel JIS G3456 Pipes Stockist in Bursa

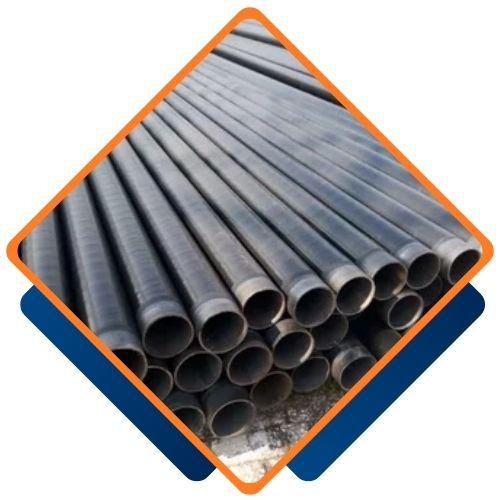

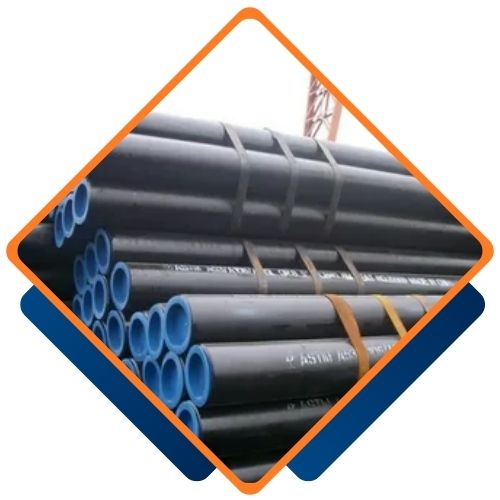

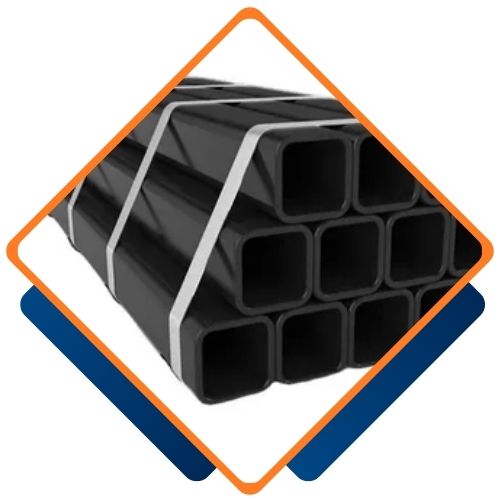

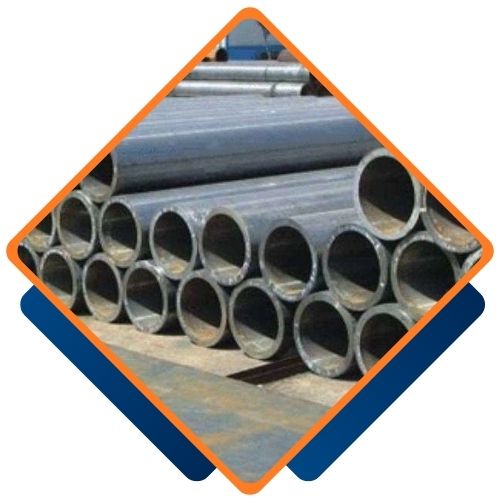

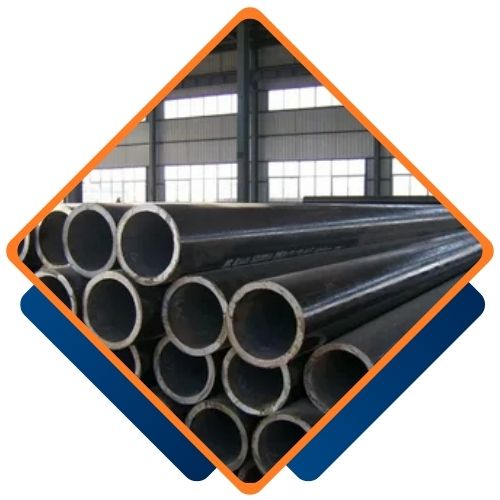

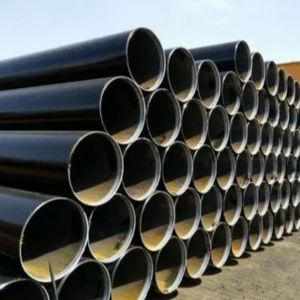

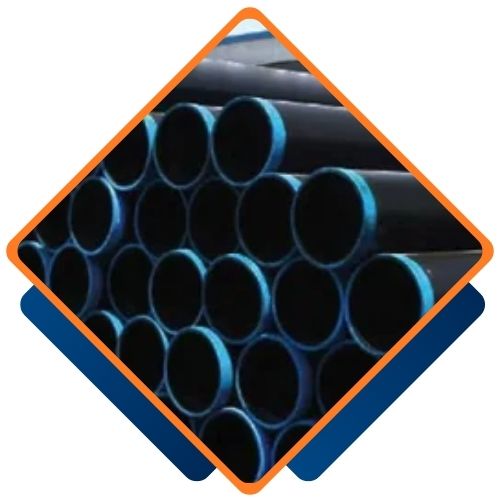

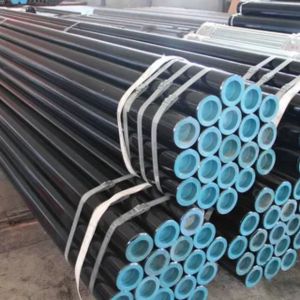

Types of Carbon Steel JISG3456 Pipes

Are Custom Sizes Available for Carbon Steel JISG3456 Pipes?

Yes, we offer custom sizes for Carbon Steel JISG3456 Pipes to meet your specific requirements. Our team at Tun Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@tunpipes.com.

JIS G3456 High Pressure Steel Pipe Exporter in Myanmar, JIS G3456 CS Pipes Price List in Naypyidaw, Schedule 10 Carbon Steel JIS G3456 Pipes Supplier in Yangon, JIS G3456 Carbon Steel Pipes Exporter in West Naypyidaw, G3456 Pipes Exporter in Naypyidaw,JIS G3456 Pipe Size Chart, JIS G3456 Price in Bago, JIS G3456 High Pressure Steel Pipe Weight Chart, JIS G3456 CS Pipes Thickness, CS JIS G3456 Pipes Supplier in Myanmar,JIS G3456 Pipe Stockist in Bursa

These pipes are extensively employed in oil and gas transmission pipelines, refineries, and petrochemical facilities for transporting fluids and gases under high-pressure conditions. They also find applications in power plants, chemical processing units, and industrial construction projects that demand durable and safe piping solutions. With their remarkable mechanical strength, toughness, and reliability, JIS G3456 Pipes stand out as the perfect choice for industries that need long-lasting, efficient, and high-performance piping systems.
