Home > Carbon Steel > Carbon Steel EN10210-1 Pipe

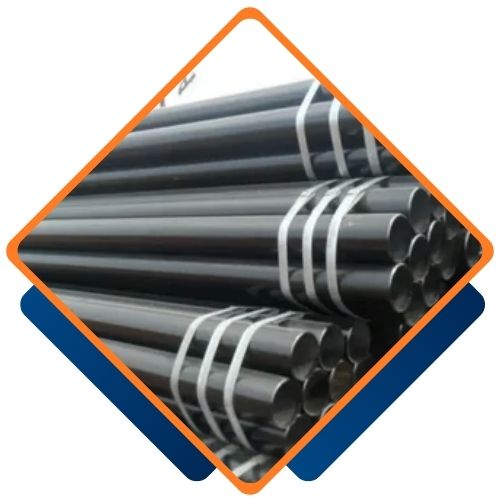

Tun Pipes, a trusted manufacturer and supplier based in Naypyidaw, is your reliable partner for industrial piping needs across Myanmar. We take pride in producing high-quality Carbon Steel EN10210-1 pipes, engineered to meet rigorous international standards. Our commitment is to deliver robust and dependable solutions that support the backbone of the nation’s growing infrastructure and construction projects, ensuring every pipeline we supply is built for performance and longevity.
The EN10210-1 specification ensures a consistent composition primarily of carbon and manganese, resulting in a material known for its excellent strength and weldability. These pipes are celebrated for their superior mechanical properties, including impressive tensile strength and a notable yield point. This combination makes them exceptionally resilient, capable of withstanding high pressures and substantial structural loads without compromising their integrity.
| Attribute | Specification |
|---|---|
| Type | Seamless / Welded / ERW |

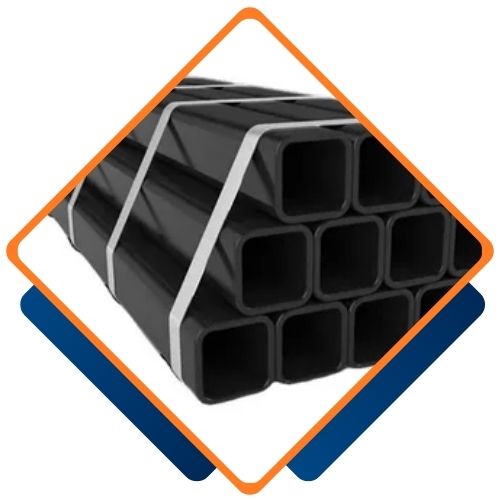

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm to 400 x 400 mm |
| Length | 6000 mm to 14000 mm |
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Standard | BS EN 10210 – Hot finished structural hollow sections of non-alloy and fine grain steels |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3 mm to 914 mm |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Wall Thickness | 0.5 mm to 25 mm |
| Steel Grade | Chemical Composition Limits (%) | |||||
| C Max. | Si Max. | Mn Max. | P Max. | S Max. | N Max. | |
| S235JRH | 0.17 | – | 1.40 | 0.040 | 0.040 | 0.009 |
| S275J0H | 0.20 | – | 1.50 | 0.035 | 0.035 | 0.009 |
| S275J2H | 0.20 | – | 1.50 | 0.030 | 0.030 | – |
| S355J0H | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 0.009 |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| Steel Grade | Mechanical Properties | Impact Energy (KV J) | ||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Test Temperature At Test Temperature of ℃ | |||
| -20 | 0 | 20 | ||||
| S235JRH | 235 | 360-510 | 26 | – | – | 27 |
| S275J0H | 275 | 410-560 | 23 | – | 27 | – |
| S275J2H | 275 | 410-560 | 23 | 27 | – | – |
| S355J0H | 355 | 510-680 | 22 | – | 27 | – |
| S355J2H | 355 | 510-680 | 22 | 27 | – | – |
| S355K2H | 355 | 510-680 | 22 | 40 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel EN10210-1 Pipe from Tun Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
Tun Pipes and Tubes is one of the largest Carbon Steel EN10210-1 Pipe suppliers in Naypyidaw, Myanmar, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel EN10210-1 Pipe to meet your specific requirements. Our team at Tun Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@tunpipes.com.
These pipes are widely utilized in industries that demand robust, durable, and versatile piping solutions. In construction and civil engineering, they serve as structural frameworks, columns, and heavy-duty supports. The automotive and machinery sectors rely on them for precision components, mechanical assemblies, and hydraulic systems. Meanwhile, the petrochemical and process industries use them for high-pressure process piping and equipment connections. With their blend of mechanical strength, durability, and dimensional precision, EN10210-1 Pipes are the go-to choice for industrial and structural applications that require reliability and a long service life.
